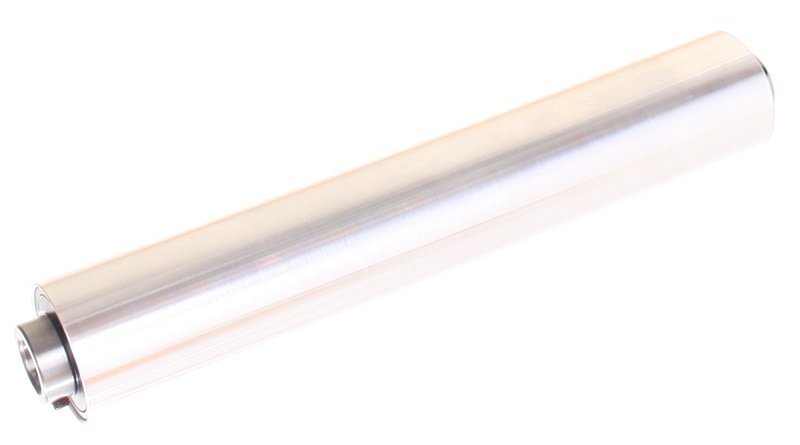

2" Diameter x 1/8" wall x 11" Face Length Aluminum Dead Shaft Idler Roll

Home > Rollers > Cantilevered >

B-7472-002: 2" Diameter x 1/8" wall x 11" Face Length Aluminum Dead Shaft Idler Roll

Our Price: $165.64

Part #: B-7472-002
Product Weight: 2 Pounds (1 kg)
Quantities Greater Than in Stock: Usually Ships in 2 to 4 Weeks

Quantity in Stock:(Out of Stock)

Availability: Usually Ships in 1 to 2 Business Days
Part #: B-7472-002

Qty:

This Item is Made From and/or Includes

2 of B-7226-003: Bearing ER with 3/4" Bore (501916)
1 of B-7593-002: IDLER

Description

PDF Printer Friendly Version of Drawing

Download Solid Model and Autocad Drawing

2" Diameter x 1/8" wall x 11" Face Length Aluminum Dead Shaft Idler Roll

• Outer diameter is nominal. This means the outer diameter is machined for the least stock removal until the surface is:
1. Free of all defects
2. Surface finish of 32 micro inches (Ra). This prevents any scratching of delicate webs - films, etc.
3. The outer diameter and bore are concentric within 0.002"
4. Straight within 0.002" or 0.0005" per foot of length. Includes: 1. Two low friction ball bearings. One pressed into each end.

a. Each bearing includes 2 socket head set screws to lock the inner ring of the bearing to the dead (non-rotating) mounting shaft (sold separately) Note: Worn bearings may be replaced using a bearing puller for removal. Replacement bearings are sold separately.

• Slides over 3/4" Outer Diameter Mounting Shaft

• Super Lightweight and Low-inertia
