Sizing DBH
Disk Brake Brake for Unwind Tension Control
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INPUT
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enter Tension
|
|
pli
|
|
|
|
(see chart below if needed)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roll Diameter:
|
|
in.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Web width
|
|
|
in.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Core diameter
|
|
in.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Web (Linear) Speed
|
|
ft/min
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculate
|
|
|
|
|
|
|
|
|
|
Tension
Value Chart
|
|
|
CALCULATED RESULTS
|
|
|
|
|
|
|
|
|
|
|
|
|
Foil .001 inches thick
|
|
1
|
|
|
|
|
|
|
Foil .002 inches thick
|
|
2
|
|
|
|
|
|
|
Mylar .0005 inches thick
|
0.25
|
|
|
Tension
|
|
pli
|
|
Mylar .001 inches thick
|
0.75
|
|
|
|
|
|
|
|
|
Mylar .002 inches thick
|
1.5
|
|
|
Maximum Torque
|
|
lb ft
|
|
|
Polyethylene .001 inches thick
|
0.25
|
|
|
|
|
|
|
|
|
Polyethylene .002 inches
thick
|
0.5
|
|
|
Slip RPM (at full roll)
|
|
rpm
|
|
Acetate .0005 inches
thick
|
0.25
|
|
|
|
|
|
|
Acetate .001 inches
thick
|
0.5
|
|
|
Heat
Dissipated
|
|
W
|
|
Acetate .002 inches
thick
|
1
|
|
|
|
|
|
|
|
|
Polystyrene .0005 inches thick
|
0.5
|
|
|
Maximum RPM
|
|
rpm
|
|
Polystyrene .001 inches thick
|
1
|
|
|
|
|
|
|
|
|
Polystyrene .002 inches
thick
|
2
|
|
|
|
|
|
|
Cellophane .001 inches
thick
|
0.5
|
|
|
|
Wax Paper .001 inches
thick
|
1
|
|
|
|
Wax Paper .002 inches thick
|
2
|
|
|
The
proper size brake must....
|
|
Newspaper .002 inches thick
|
0.25
|
|
|
|
|
|
|
Newspaper .003 inches thick
|
0.75
|
|
|
have
sufficient torque
|
|
|
Kraftpaper 0.005 inches
thick
|
1.5
|
|
|
be able to
dissipate the heat
|
|
|
Kraftpaper 0.01 inches thick
|
4
|
|
|
not run
above rated speed
|
|
|
Paperboard 8 pt.
|
|
3
|
|
|
|
|
|
Paperboard 12 pt.
|
|
4
|
|
|
|
|
|
|
Paperboard 15 pt.
|
|
5
|
|
|
The
following brakes meet your specifications:
|
|
Paperboard 20 pt.
|
|
7
|
|
|
|
|
Paperboard 25 pt.
|
|
9
|
|
|
|
|
Paperboard 30 pt.
|
|
1
|
|
|
|
|
Paper 15 lbs./ream
|
|
0.5
|
|
|
|
|
Paper 20 lbs./ream
|
|
0.75
|
|
|
|
|
Paper 30 lbs./ream
|
|
1
|
|
|
|
|
Paper 40 lbs./ream
|
|
1.5
|
|
|
|
|
Paper 60 lbs./ream
|
|
2.5
|
|
|
|
|
Paper 100 lbs./ream
|
|
4
|
|
|
|
|
|
|
|
|
|
|
|
Choose
the smallest from above and verify on graphs below
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sizing
Air Brake for Cycling or Controlled Starting or Stopping
|
|
|
|
|
|
|
|
|
|
|
INPUT
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enter Tension
|
|
pli
|
|
|
(see chart above if needed)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roll Diameter:
|
|
in.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Web width
|
|
|
in.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Core diameter
|
|
in.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Web (Linear) Speed
|
|
ft/min
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roll Weight:
|
|
lbs.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Time to stop the
load
|
|
s
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculate
|
|
|
|
|
|
|
|
|
|
|
|
CALCULATED RESULTS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tension
|
|
pli
|
|
|
|
|
|
|
|
|
|
|
Torque (due to unwinding)
|
|
lb ft
|
|
|
|
|
|
|
|
|
|
Slip RPM (at full roll)
|
|
rpm
|
|
|
|
|
|
|
|
|
|
|
|
Heat Dissipated
|
|
W
|
|
|
|
|
|
|
|
|
|
|
|
Maximum RPM
|
|
rpm
|
|
|
|
|
|
|
|
|
Inertia
|
|
lbft2
|
|
|
|
|
|
|
|
|
|
Torque (due to
inertia)
|
|
lb ft
|
|
|
(controlled
deceleration conditions)
|
|
|
|
|
|
|
|
|
|
|
|
Limiting torque
|
|
lb ft
|
|
|
|
|
|
|
|
|
|
|
|
The
proper size brake must....
|
|
|
|
|
|
|
have
sufficient torque
|
|
|
|
be
able to dissipate the heat
|
|
|
|
not
run above rated speed
|
|
|
|
|
|
|
The
following brakes meet your specifications:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

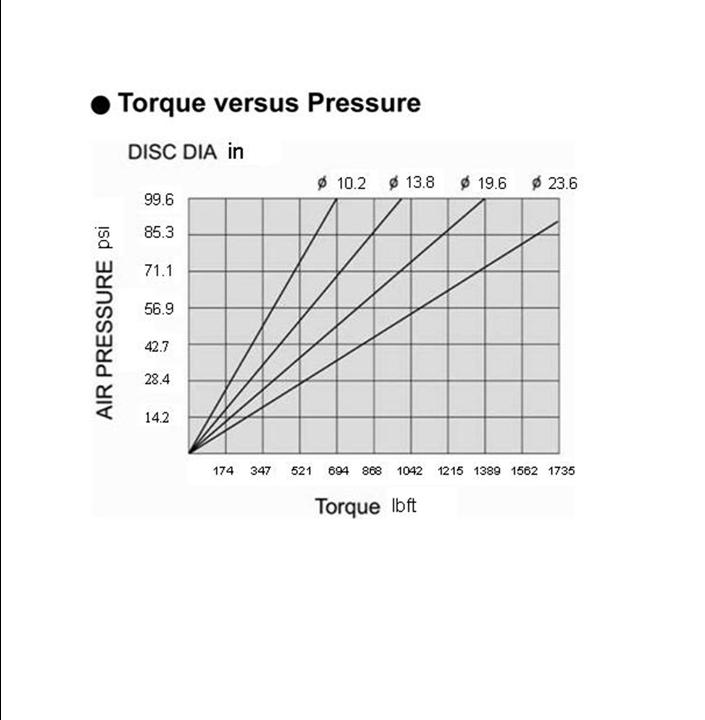

Choose
the smallest from above and verify on graph below
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
