500268: Safety Chuck

Home >

Our Price: $417.70 Each

Availability: Usually Ships in 1 to 2 Weeks
Part #: 500268

Qty:

Description

Mill Cut, C Type safety chucks are the most common type of safety chuck. The pocket is heat treated for durability. However, when the pocket does wear out the unit should be replaced.

Un-shafted Only Half of a set. Does not include the shafted side

Specification

Capacities
Max Roll Weight Each	880# [400kg]
Dimensions

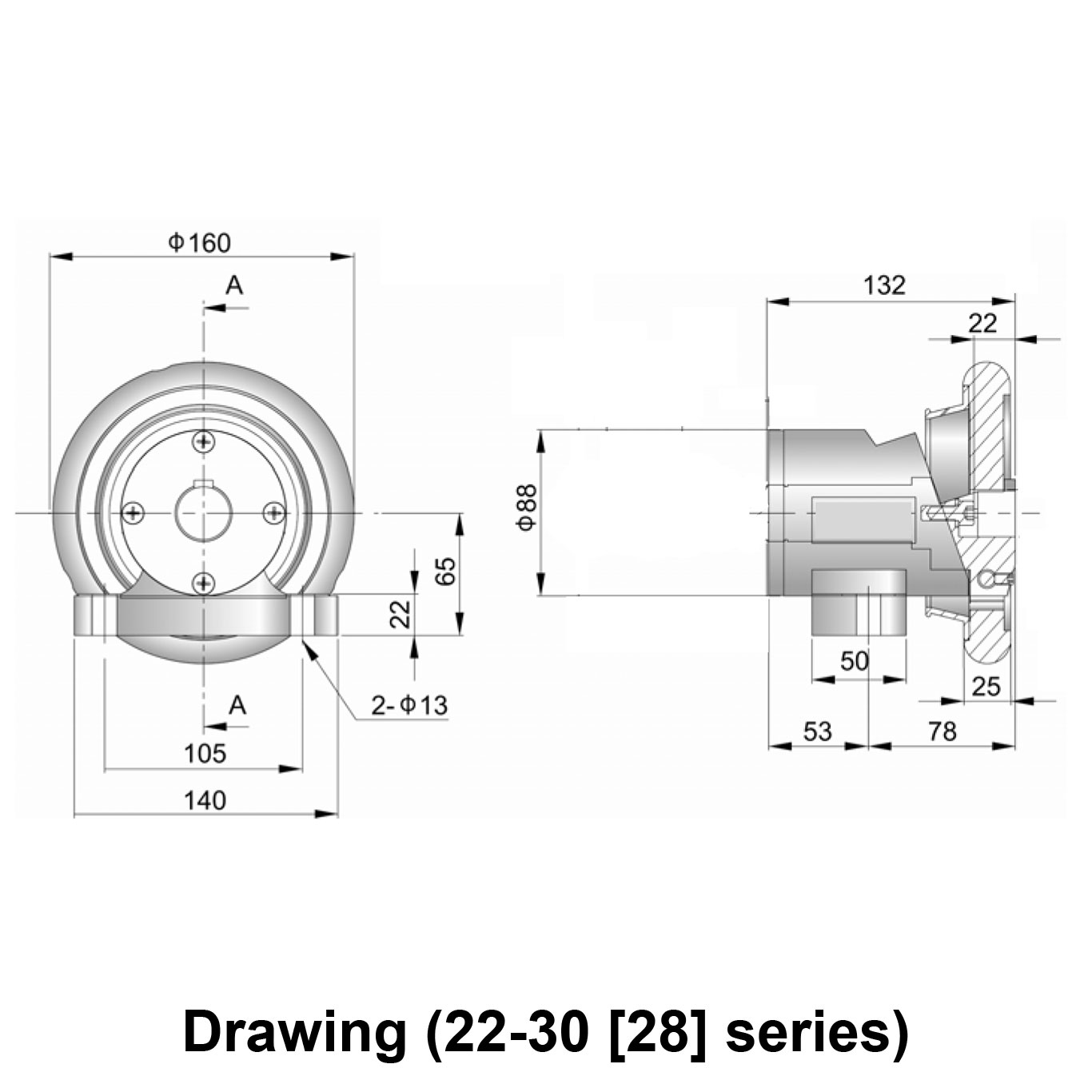

Drawing	2D Drawing PDF
3D Model	3D STEP
Features
Product Condition	New
Entry Angle	90°
Replaceable Insert	No
Sliding Adjustment	No
Installation
Mounting	Foot
Mounting Bolt Size	0.437" (7/16") [12mm] Dia.
Mounting Bolt Distance	4.133" (4-1/8") [105mm]
Winding Shaft Length Requirement	Winding Shaft Square Requirements PDF
Alignment
Support
Phone and email Support	Free - Ask an engineer for help
Warranty	1 Year
Replacement Parts	Replacement Parts List
Compare To
JRC Web	N/A
Niika	PIO28
Boschert	22-30

Options

Product Series

22-30 [PIO 28]

Square Size (Foot Type - No Shaft)

Tolerance: +0.002" to +0.004" [+0.05mm to +0.10mm]

1.181" (1-3/16") [30.00mm]

Can this item be returned and/or order cancelled

Yes - 30 Days

details
